Message Subject: Transducer spray

bobbie

Posted 6/3/2012 2:06 PM (#563106)
Subject: Transducer spray

Posts: 559

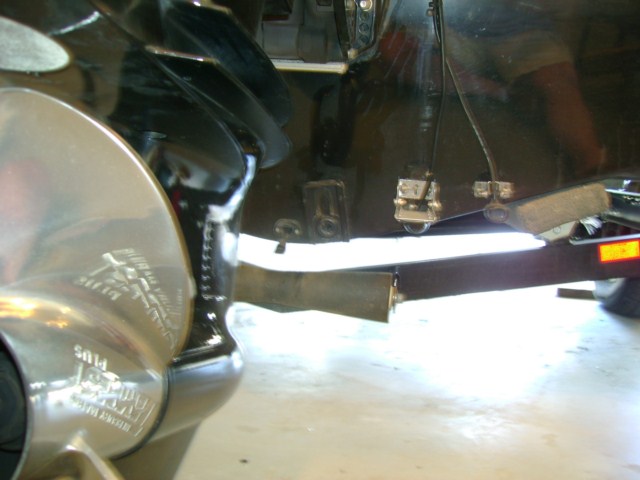

Just got back from Oahe the first time out with new LSS1. The spray from the ducers is coming back into thre cockpit, not bad on a hot day but not good on a cold one. Anybody have any ideas how to get this to stop. I do not want to put wave wackers on. Also I now lose depth on sonar when on plane.

Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window

Click to expand / contract the width of this image

(009 [640x480].JPG)

Attachments
----------------

009 [640x480].JPG (74KB - 122 downloads)

bobbie

Posted 6/3/2012 2:13 PM (#563109 - in reply to #563106)
Subject: RE: Transducer spray

Posts: 559

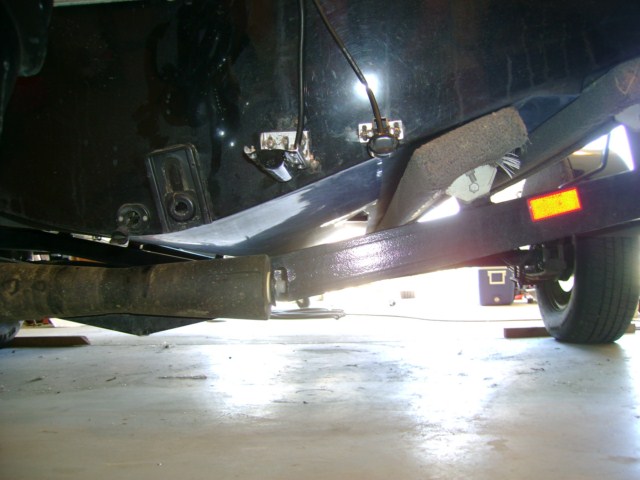

pic

Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window

(008 [640x480].JPG)

Attachments
----------------

008 [640x480].JPG (67KB - 128 downloads)

sworrall

Posted 6/3/2012 2:49 PM (#563113 - in reply to #563106)
Subject: Re: Transducer spray

Posts: 32958

Location: Rhinelander, Wisconsin

Looks like the transducer on the right is too low.

bobbie

Posted 6/3/2012 2:52 PM (#563114 - in reply to #563113)
Subject: Re: Transducer spray

Posts: 559

If I raise it less spray I would guess. But will I pick up sonar depth on plane?

sworrall

Posted 6/3/2012 3:05 PM (#563115 - in reply to #563106)
Subject: Re: Transducer spray

Posts: 32958

Location: Rhinelander, Wisconsin

Loosen the transducer. Take a straight edge and place it along the bottom of the boat, rest the transducer on top of it, and tighten it down. Try to make the transducer even with the running bottom, and it will be good.
