Message Subject: BATTERY HOOK UP QUESTION

Guest

Posted 3/22/2005 7:50 PM (#140068)
Subject: BATTERY HOOK UP QUESTION

What is the hook up routing for connecting two deep cycle trolling motor batteries to get twice the amount of 12 volt running time. Do I connect negative to negative and positive to positive, or what? PLEASE HELP!!!!!!!! . ALSO, can you charge the two batteries as one unit????
Thanks,
guest

lambeau

Posted 3/22/2005 9:49 PM (#140097 - in reply to #140068)
Subject: RE: BATTERY HOOK UP QUESTION

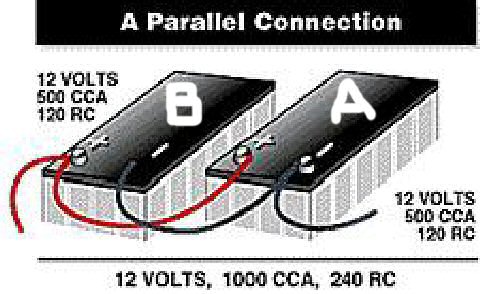

you want to connect your batteries in a basic "parallel" fashion to keep it at 12v, but increase your amp-hours.
connect the universal ground to the negative of battery A, and then to the negative of battery B.
connect the positive of battery A to the positive of battery B to the trolling motor plug.
(ground the plug to the universal ground as well.)

see diagrams and explanations here:
http://www.yachtoutfitting.com/batteries.html
http://www.ibsa.com/www_2001/content/batt_tech/marine_rv/marine_bat...

Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window

Click to expand / contract the width of this image

(batteries.jpg)

Attachments
----------------


guest

Posted 3/23/2005 5:34 PM (#140302 - in reply to #140097)
Subject: RE: BATTERY HOOK UP QUESTION

Lambeau,
Thanks for the information. I really appreciate it.
Guest
