Message Subject: Thru wire construction
All Eyes
Posted 4/15/2023 11:22 AM (#1019894)
Subject: Thru wire construction




Posts: 141


I was recently asked what method that I use to build my one piece thru wired baits. A wire slot first gets cut into my blanks on a table saw while still in block form. Then I cut wood strips that fit tight against the wire and get epoxied into the slot. I prefer this over filling in the entire slot with resin, which can lead to cracking over time as the wood expands and contracts. I also hate drilling all the way through these longer musky cranks and making drop wires for hook hangers, so this is how I do them all now.
Also, my blanks and strips get a few coats of Minwax wood sealer before putting the wire in. The strips are epoxied in with 2 ton.

Edited by All Eyes 4/15/2023 11:47 AM



Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

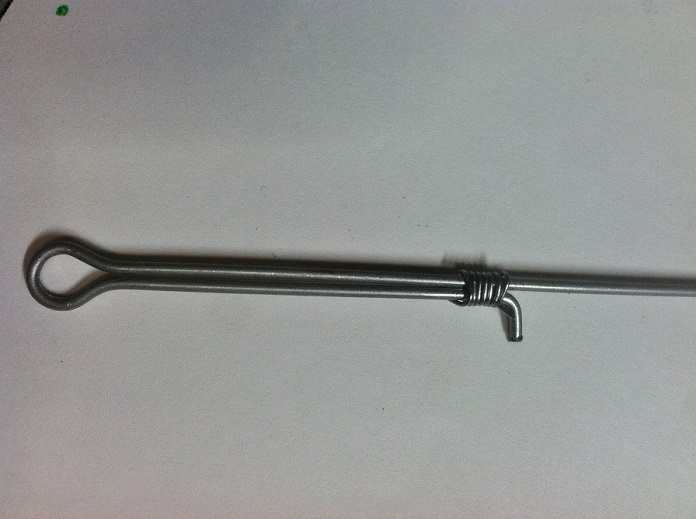

(thru wire small.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

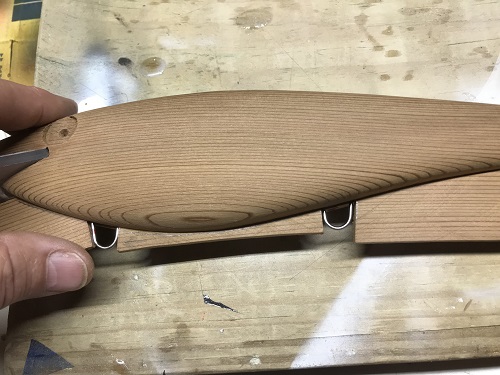

(thru wire small2.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

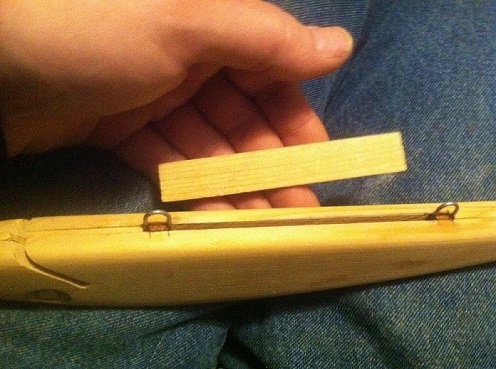

(thru wire1.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

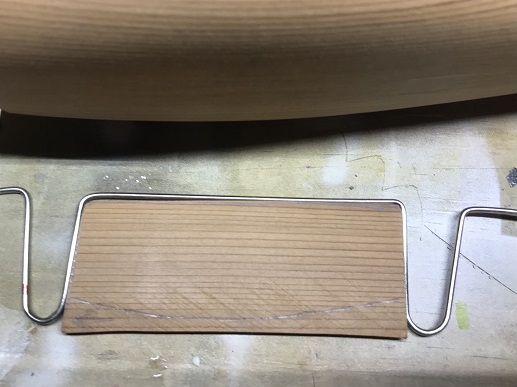

(thru wire2.JPG)



Attachments
----------------
Attachments thru wire small.jpg (84KB - 55 downloads)
Attachments thru wire small2.jpg (113KB - 53 downloads)
Attachments thru wire1.JPG (81KB - 56 downloads)
Attachments thru wire2.JPG (64KB - 56 downloads)
North of 8
Posted 4/16/2023 7:34 AM (#1019931 - in reply to #1019894)
Subject: Re: Thru wire construction




Great photos of terrific work.
Solitario Lupo
Posted 4/16/2023 10:52 AM (#1019934 - in reply to #1019894)
Subject: Re: Thru wire construction





Location: PA Angler
Great work looks like they can hold some weight.
