More Muskie Fishing -> Basement Baits and Custom Lure Painting -> Another basement Jig/tool wire harness

Message Subject: Another basement Jig/tool wire harness
spoonpluggergino
Posted 2/17/2015 4:54 PM (#754417)
Subject: Another basement Jig/tool wire harness





Posts: 321


Location: Glen Ellyn Il		When I started making balsa twitch baits I was bending the wire with Knipex round nose pliers, very good pliers but it was very slow, too many measurement and not very accurate. Here is what I came up with. There are enough pi. and drawing to understand how is made and how it works. Feel free to ask any question. Hopefully this will help beginners basement guys
Gino

Edited by spoonpluggergino 2/17/2015 5:11 PM



Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

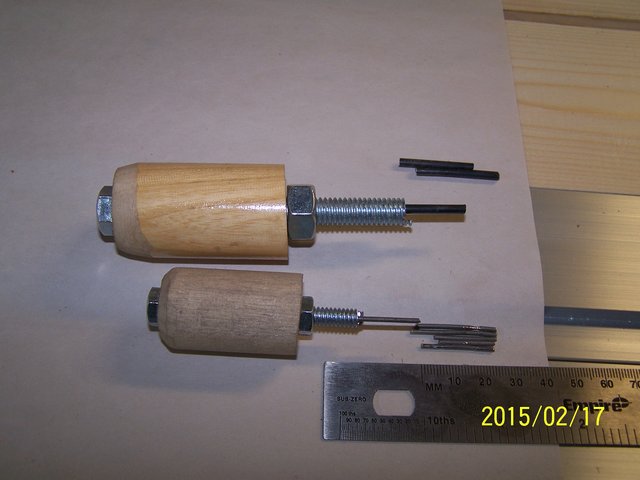

(tut.tool.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

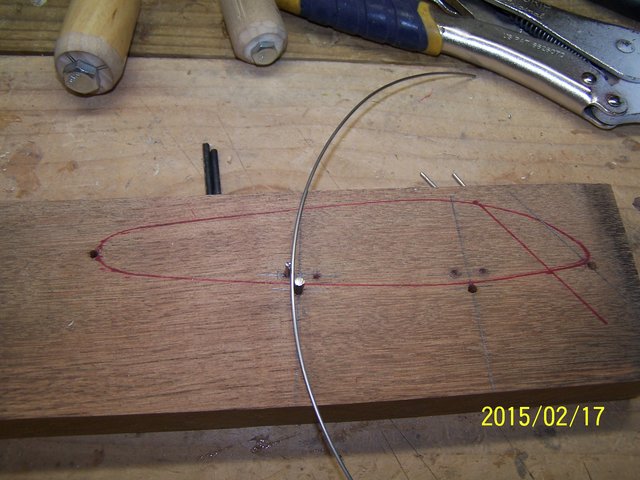

(tut.1stbend.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

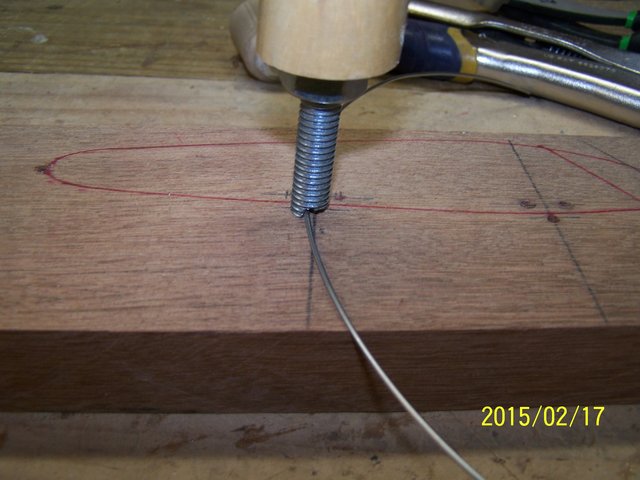

(tut,postool.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

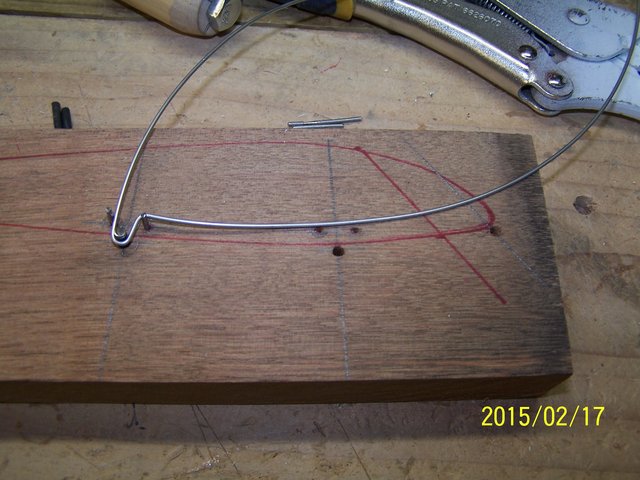

(1stcombd.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

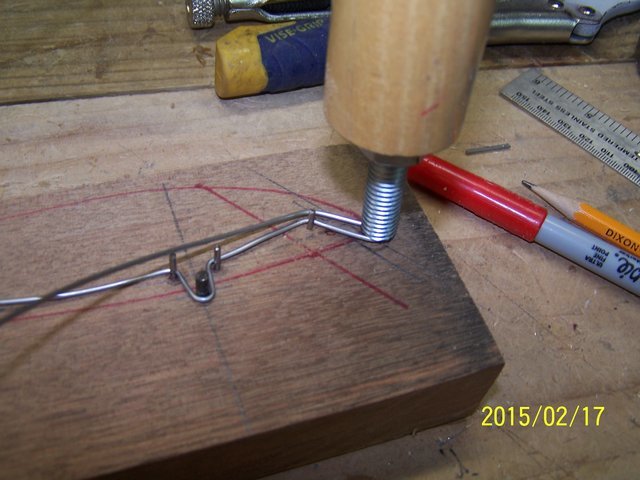

(tut.front.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image

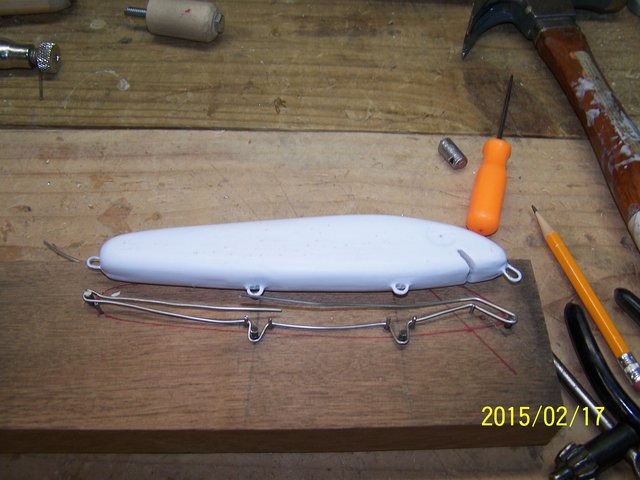

(tut.comp.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(JigTool.jpg)



Attachments
----------------
Attachments tut.tool.jpg (44KB - 182 downloads)
Attachments tut.1stbend.jpg (70KB - 195 downloads)
Attachments tut,postool.jpg (58KB - 217 downloads)
Attachments 1stcombd.jpg (69KB - 197 downloads)
Attachments tut.front.jpg (63KB - 192 downloads)
Attachments tut.comp.jpg (63KB - 209 downloads)
Attachments JigTool.jpg (39KB - 194 downloads)
Potomac
Posted 2/17/2015 5:34 PM (#754423 - in reply to #754417)
Subject: Re: Another basement Jig/tool wire harness




Posts: 141


Location: Maryland		Cool design. Thanks for sharing
mnmusky
Posted 2/17/2015 5:44 PM (#754426 - in reply to #754423)
Subject: Re: Another basement Jig/tool wire harness




yep. thats a nice one Gino.
Trophyseeker50
Posted 2/17/2015 5:53 PM (#754431 - in reply to #754417)
Subject: Re: Another basement Jig/tool wire harness





Posts: 791


Location: WI		Love it Gino. Will you be at the Wausau show?
spoonpluggergino
Posted 2/17/2015 7:26 PM (#754444 - in reply to #754417)
Subject: Re: Another basement Jig/tool wire harness





Posts: 321


Location: Glen Ellyn Il		I would like to see the show, but it's a 240 mile trip for me, I would imagine a all lot of builders are at the show, I am just a green horn hobbyist and having fun making musky baits for myself once in a while I will make a bait for some one that I get to know, or somebody at the Fox River Valley Chapter 39. I am retired and this hobby keeps me busy in the basement in the winter, summer I am musky fishing. I am really enjoying my retirement mostly because I have a hobby to keep me busy in the winter
Gino
Weevil
Posted 2/17/2015 10:33 PM (#754491 - in reply to #754417)
Subject: Re: Another basement Jig/tool wire harness





Posts: 143


Location: Palatine, IL		You have some great ideas!
