Message Subject: Bucktail jig for .051 wire
spoonpluggergino
Posted 2/14/2015 10:07 PM (#753805)
Subject: Bucktail jig for .051 wire





Posts: 321


Location: Glen Ellyn Il		I am responding to a post Weevel made for bucktail tools

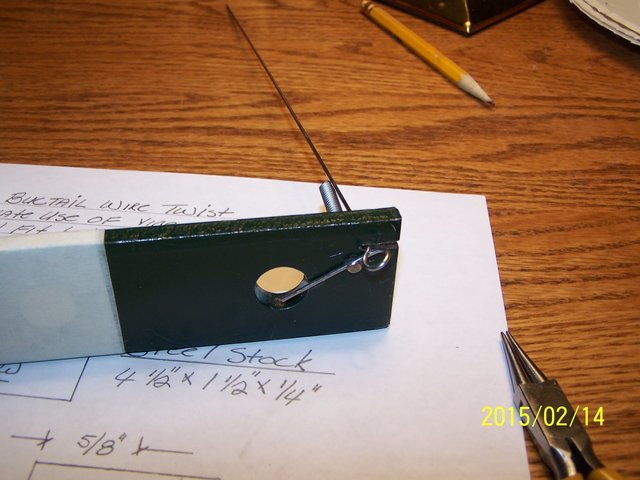

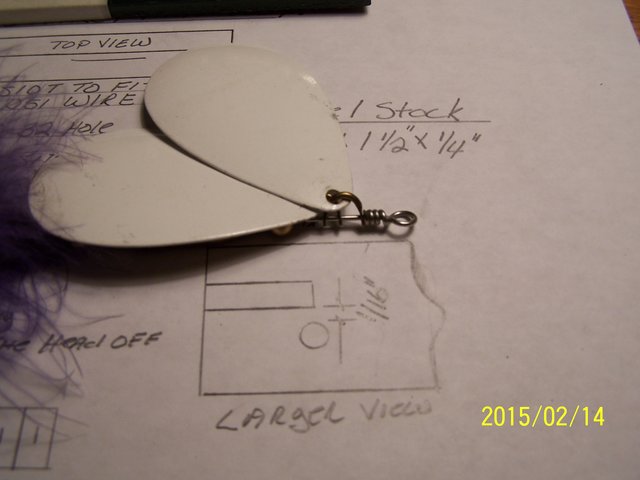

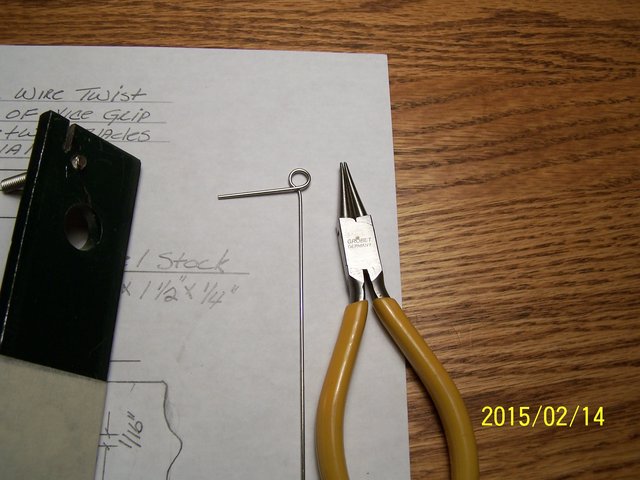

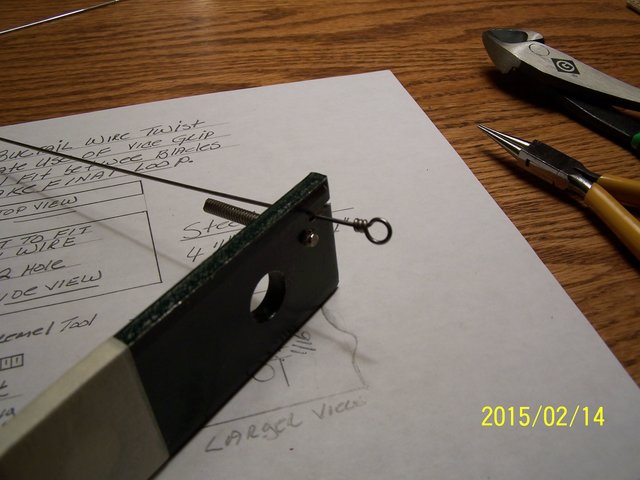

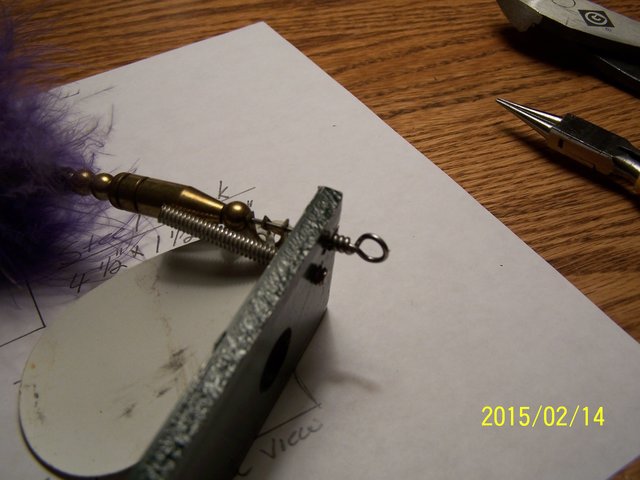

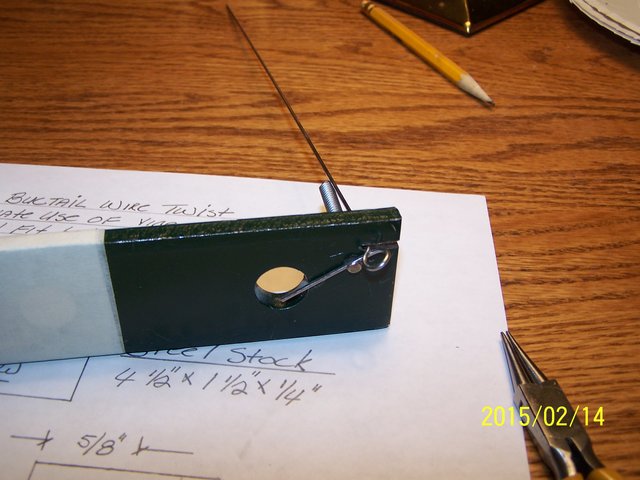

Here is a Jig that I made for my buck tails wiring, eliminated the use of vise grips and the jig is slim enough that you can make the final loop in the wire and makes perfect wraps

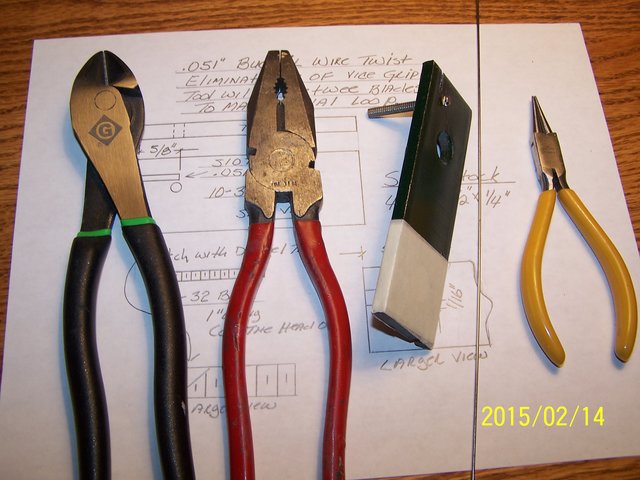

material tools you need
Drill press
one 10-32 tap and drill
one 10-32 s/s bolt about 1 inch long
a piece of steel stock 1/4 x 1.5 x 4 inches

cut the slot so the .051 wire fits in the slot ( use a hacksaw finish up with Dremel tool)
Drill and tap the 10-32 screw hole

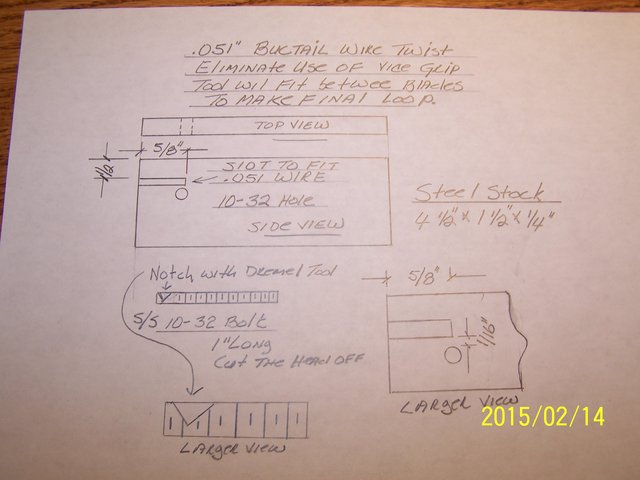

notch the 10-32 bolt at the very end see drawing, cut the head
Gino


Edited by spoonpluggergino 2/14/2015 10:17 PM



Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(2153.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(2154.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(2155.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(2157.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(2158.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(2159.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(2160.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(2161.jpg)



Attachments
----------------
Attachments 2153.jpg (70KB - 206 downloads)
Attachments 2154.jpg (61KB - 225 downloads)
Attachments 2155.jpg (62KB - 211 downloads)
Attachments 2157.jpg (57KB - 221 downloads)
Attachments 2158.jpg (53KB - 194 downloads)
Attachments 2159.jpg (39KB - 213 downloads)
Attachments 2160.jpg (78KB - 207 downloads)
Attachments 2161.jpg (47KB - 205 downloads)
Gringo Loco
Posted 2/15/2015 9:23 AM (#753829 - in reply to #753805)
Subject: RE: Bucktail jig for .051 wire




Posts: 655


Location: Moses Lake, WA		Now that's a sweet piece of design work, a veritable "basement beauty."
spoonpluggergino
Posted 2/15/2015 1:00 PM (#753858 - in reply to #753805)
Subject: Re: Bucktail jig for .051 wire





Posts: 321


Location: Glen Ellyn Il		I made another one today for .062 wire and I tried without threading the hole. I drilled a 1/8 hole and used a 1/8 steel pin, it works just fine, no threading needed. a all lot easier
Gino

Edited by spoonpluggergino 2/15/2015 1:29 PM
muskzilla
Posted 2/15/2015 1:09 PM (#753863 - in reply to #753805)
Subject: RE: Bucktail jig for .051 wire




Posts: 10


nice ill take one of each and one of your ST.Clair bombers ? sean
Trophyseeker50
Posted 2/15/2015 7:07 PM (#753920 - in reply to #753805)
Subject: Re: Bucktail jig for .051 wire





Posts: 791


Location: WI		Nice Gino. Very innovative.
Weevil
Posted 2/15/2015 8:52 PM (#753944 - in reply to #753805)
Subject: Re: Bucktail jig for .051 wire





Posts: 143


Location: Palatine, IL		Thanks! I should be able to put one of those together.
spoonpluggergino
Posted 2/16/2015 5:03 AM (#753968 - in reply to #753944)
Subject: Re: Bucktail jig for .051 wire





Posts: 321


Location: Glen Ellyn Il		Here is the metal bracket made by unistrut corporation, most mechanical supply house carry this type of bracket, see HVAC, Plumbing Electrical, or you may find a flat 1/4 stock at Home Depot
http://www.mcmaster.com/#strut-channel-systems/=vxkns9 look under heavy duty bracket when you log on at McMastercarr

Gino

Edited by spoonpluggergino 2/16/2015 5:06 AM
esoxone
Posted 2/16/2015 12:27 PM (#754040 - in reply to #753805)
Subject: Re: Bucktail jig for .051 wire




Posts: 424


Bravo,Gino !!!

Un attrezzo molto ingegnoso,non per niente tu sei italiano : ) : ) : )
Vorrei rifare il tuo attrezzo, ma qui in Italia รจ difficile trovare viti in pollici,puo dirmi (anche in PM) che viti in millimetri posso usare ?
Puoi darmi (anche in PM ) le misure del tuo progetto in millimetri ?


esoxone

Edited by esoxone 2/16/2015 12:30 PM
spoonpluggergino
Posted 2/16/2015 3:53 PM (#754091 - in reply to #753805)
Subject: Re: Bucktail jig for .051 wire





Posts: 321


Location: Glen Ellyn Il		Il mio Italiano non e veramente buono Io posso fare I misuri in millimetri, dammi la tua e-mail io tengo tante cose che ti posso mandare, se le vuoi. Io credevo che tu stai in America
Gino

My e-mail [email protected]

Edited by spoonpluggergino 2/16/2015 3:58 PM
MRichardson
Posted 2/17/2015 8:27 AM (#754290 - in reply to #753805)
Subject: RE: Bucktail jig for .051 wire





Nice work, good to see some classic drafting skills.  Not many of us trained in that anymore.
muskyslayer96
Posted 2/19/2015 5:25 PM (#754916 - in reply to #753805)
Subject: Re: Bucktail jig for .051 wire





Posts: 615


Location: Madison, WI		beautiful Gino!
Do you have any extra you want to get rid of
well done
MS

Edited by muskyslayer96 2/19/2015 5:26 PM
