Message Subject: Lure spinner
MRichardson
Posted 1/14/2015 12:23 PM (#748445)
Subject: Lure spinner

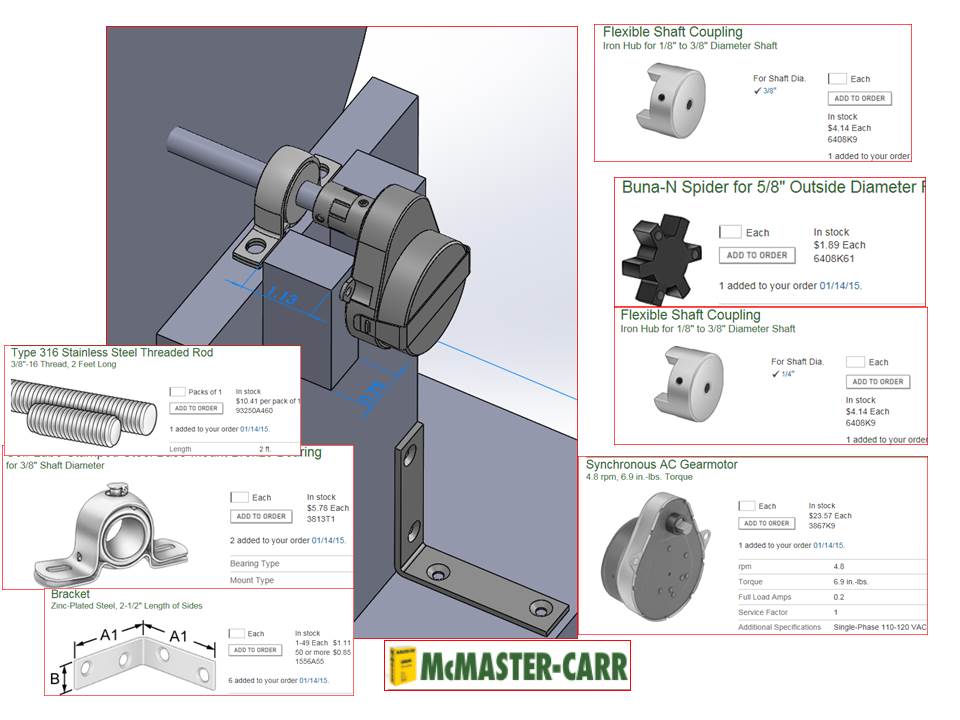

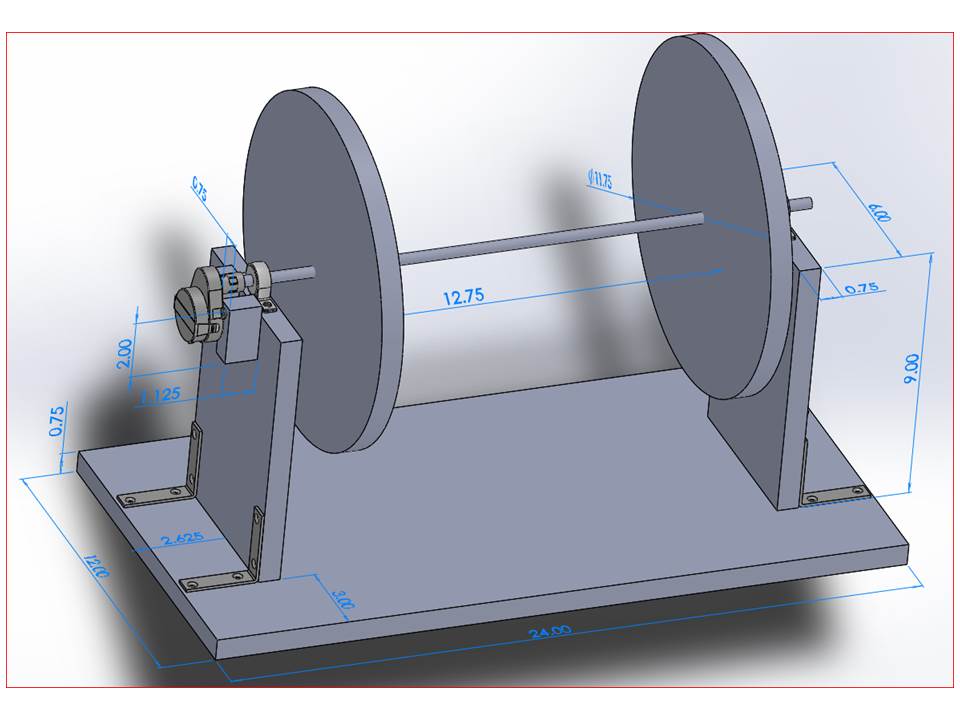

Hey all, it’s been a while since I’ve posted anything.  That’s because my shop has been packed up for the last year and a half.  I’m finally setting up shop again and can’t wait to start making lures.  Well my lure spinner did not fare the move very well and it was time to rebuild it anyway.  I just finished my plans for a new one and thought I’d share them here in case it’s helpful to anyone.



Edited by MRichardson 1/14/2015 12:53 PM



Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(Lure Spinner.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(Lure Spinner motor assy.jpg)



Attachments
----------------
Attachments Lure Spinner.jpg (49KB - 542 downloads)
Attachments Lure Spinner motor assy.jpg (77KB - 546 downloads)
CedarLakeMusky
Posted 1/14/2015 12:42 PM (#748457 - in reply to #748445)
Subject: Re: Lure spinner




Thank you for sharing.
Scott
CedarLakeMusky
Posted 1/14/2015 12:54 PM (#748459 - in reply to #748445)
Subject: Re: Lure spinner




Mike,
Are you using a threaded rod for a reason. Are the holes in your wheels threaded?
Thanks,
Scott
mnmusky
Posted 1/14/2015 12:58 PM (#748460 - in reply to #748457)
Subject: Re: Lure spinner




Wow. Now that's planning!
MRichardson
Posted 1/14/2015 1:02 PM (#748461 - in reply to #748459)
Subject: Re: Lure spinner

Yes for a reason, first they are cheaper than drive shafts and will fit in the bearings good enough, but mainly I’ll use 3/8 nuts to jam secure the two plates or whatever other attachments I might want to have on the shaft.

musky slut
Posted 1/14/2015 1:13 PM (#748464 - in reply to #748445)
Subject: Re: Lure spinner




Posts: 496


Mike Thanks for that , glad to see you are getting back up and running . Been wanting to redo my spinner , so that gave me some ideas .
ShutUpNFish
Posted 1/16/2015 12:57 PM (#748895 - in reply to #748445)
Subject: Re: Lure spinner





Posts: 1202


Location: Money, PA		Welcome back Mike!
Loft
Posted 1/20/2015 7:39 AM (#749496 - in reply to #748445)
Subject: RE: Lure spinner




Posts: 1


Another option is the one used in the movie i'm linking to, just watch the last 10 seconds.
I think it's a smart solution

https://m.youtube.com/watch?v=8Vg_eUSxA8g
MRichardson
Posted 1/26/2015 8:56 AM (#750352 - in reply to #748445)
Subject: RE: Lure spinner

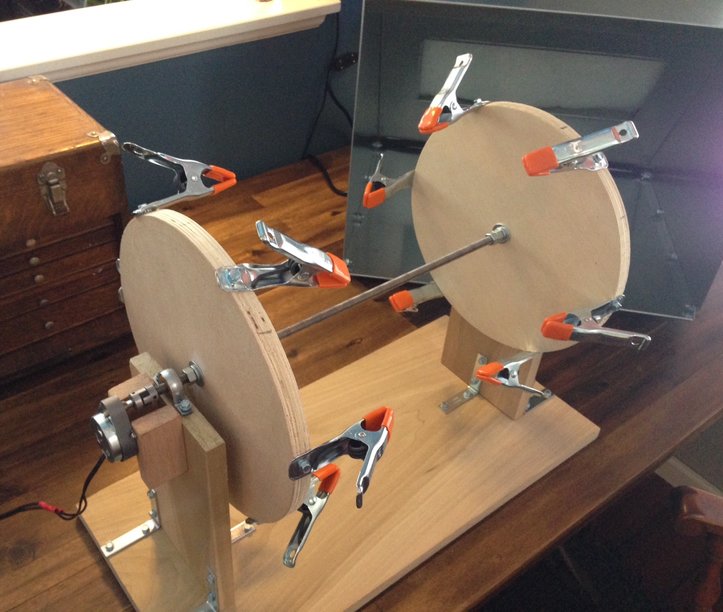

I built the drying wheel last weekend; total build time was about a six pack.   Here’s what it looks like.




Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(drying_wheel.jpg)



Attachments
----------------
Attachments drying_wheel.jpg (79KB - 535 downloads)
musky slut
Posted 1/26/2015 9:44 AM (#750363 - in reply to #748445)
Subject: Re: Lure spinner




Posts: 496


Mike, Whats the Buna n Spider thing do/for ? Looks great
MRichardson
Posted 1/26/2015 9:50 AM (#750364 - in reply to #748445)
Subject: RE: Lure spinner

The buna spider is soft rubber and fits within the two couplings to absorb misalignment

musky slut
Posted 1/26/2015 2:49 PM (#750419 - in reply to #748445)
Subject: Re: Lure spinner




Posts: 496


Cool thanks . cant wait to see some baits on that thing
genesisperformance
Posted 10/1/2016 9:26 AM (#831979 - in reply to #748445)
Subject: RE: Lure spinner





Posts: 403

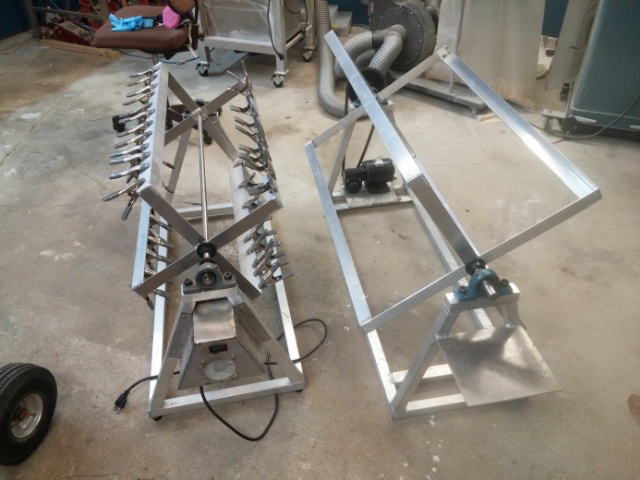

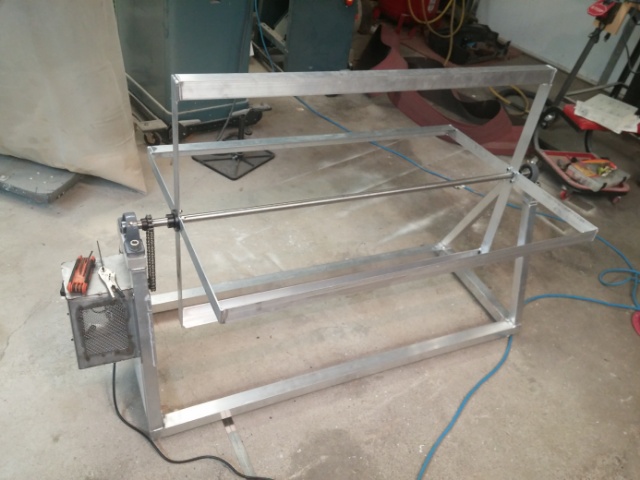

Location: Lakeville, MN		Ive built a few of these


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_20161001_092723.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_20161001_092835.jpg)



Attachments
----------------
Attachments IMG_20161001_092723.jpg (90KB - 470 downloads)
Attachments IMG_20161001_092835.jpg (105KB - 448 downloads)
rougarou
Posted 10/10/2016 6:10 PM (#832904 - in reply to #748445)
Subject: RE: Lure spinner





Posts: 102

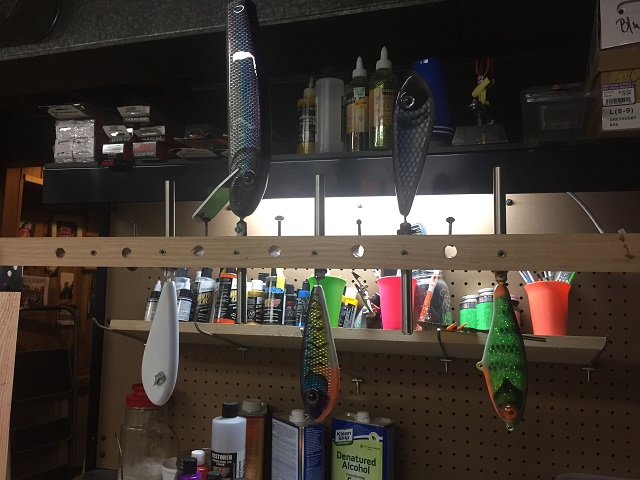

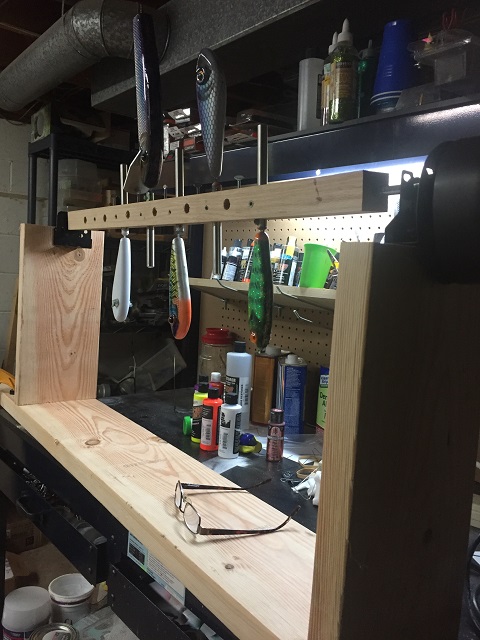

i just changed my spinner from a wheel to this cost is about $80 - $100 main cost is motor i spaced at 4" so i have 12 spots but you can move them in to 2" easily and would end up with 24 on a 3'-4' spinner

mike


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_1058.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_1057.JPG)



Attachments
----------------
Attachments IMG_1058.JPG (112KB - 456 downloads)
Attachments IMG_1057.JPG (102KB - 476 downloads)
laker
Posted 10/16/2016 9:50 AM (#833695 - in reply to #832904)
Subject: RE: Lure spinner




Posts: 30
Hi,

What are you using to clamp the lure blank to the axle?
