| So I decided to make a big fiberglass tackle box for my bigger lures 28X16X14. I have the sides glued together but I don't really know how to make the individual spaces. Do I gotta cut them all and glue them together? Like I would have 5 long pieces going the 28" across and I was thinking about doing 2.5" square spaces. Is there an easier way to do it so I don't have to glue so many 2.5" X14 pieces to make up the individual spaces?
(PicsArt_1349310882525.jpg)
Attachments
----------------
|
|
| |
|
Posts: 63
| look at making each one a solid piece across with notches in it much like the plano boxes.. |
|
| |
|
| So the long pieces are solid and the ones that go short ways notch them out and slip em over the long solid pieces? |
|
| |
|
Posts: 865
| Neatly cut plastic Gutters to the height, and then just notch the top in the center of each side. They can be easily removed if wanted |
|
| |
|
Posts: 432
Location: Eagan, MN | Cut a slot halfway through all of the dividers. All of the dividers going lengthwise should have the slots pointed one way (up or down) and all of the dividers going cross-wise should have the slots pointed the opposite direction. The dividers should meet at 90 degree angles and mesh together. Kind of hard to explain. |
|
| |
|
Posts: 8801
| I think I can explain it. Take the dividers out of that Plano 7915 box to the left and see how they are cut and how they fit together. That's what you want to do with yours. |
|
| |
|
| Makes perfect sense. Thank you. |
|
| |
|
| Like this right?
(PicsArt_1349440088822.jpg)
Attachments
----------------
|
|
| |
|
Posts: 432
Location: Eagan, MN | Exactly. Nice work. |
|
| |
|
| Basically done.
(PicsArt_1349747178033.jpg)
Attachments
----------------
|
|
| |
|
Posts: 1638
Location: Minnesota | looking good |
|
| |
|
Posts: 791
Location: North Central IL USA | Cool! |
|
| |
|
Location: Des Moines IA | Fiberglass? You mean Acrylic? As far as I knew you can't see through fiberglass? |
|
| |
|
Posts: 1100
| Looks nice heres how i made mine
Attachments
----------------
|
|
| |
|
Posts: 1638
Location: Minnesota | are you going to put lids on them |
|
| |
|
| I'm gonna drill holes in the bottom of mine and leave it open probably |
|
| |
|
Posts: 1224
Location: Okoboji | you used the solvent to weld the seams right? |
|
| |
|
| Yeah I used the epoxy e6000 for the seams. Clamped it and let it cute for 2 days for each seam.
I know I should have done a how to on it but I forgot. |
|
| |
|
Posts: 1143
Location: NorthCentral WI | I've built a couple of boxes like this myself. One thing to consider is where you will put the box. The first two that I made were nice but they took up a lot of room in the boat (Lakewood or Plano's would do the same). So, the beauty of any DIY project is you can do it however you want and sometimes completely re-design things after you are already under way.
Prior to building my last one this spring, I rebuilt the front deck in my boat, then built a new box to fit under the deck. I have two carpeted lids running down the center of the box (resting on aluminum rails) so I can lift one lid to access the front part of the box and one for the back section. Really turned out nice and has been very functional in the boat this year. Two big reasons I like having my box under the deck is 1) out of sight, out of mind, I don't worry about people stealing lures at every gas station or restaurant stop because they can not see them. 2) Safety of other people in the boat, especially my nephews on camping trips and such, I don't have to worry about them getting into lures and hooking themselves. At the end of a trip, the box slides right out and can be taken inside. I'll get a couple pictures of my set up.
On a side note, I am not familiar with e-6000 epoxy but I would use either the Weld-on 3 product that is made for bonding acrylic to itself or use hardware like the other guy did here. It would really suck if you were carrying your new box to the boat and it broke apart and dumped your baits all over. |
|
| |
|
Posts: 128
| MartinTD - 10/9/2012 9:29 AM
I've built a couple of boxes like this myself. One thing to consider is where you will put the box. The first two that I made were nice but they took up a lot of room in the boat (Lakewood or Plano's would do the same). So, the beauty of any DIY project is you can do it however you want and sometimes completely re-design things after you are already under way.
Prior to building my last one this spring, I rebuilt the front deck in my boat, then built a new box to fit under the deck. I have two carpeted lids running down the center of the box (resting on aluminum rails) so I can lift one lid to access the front part of the box and one for the back section. Really turned out nice and has been very functional in the boat this year. Two big reasons I like having my box under the deck is 1) out of sight, out of mind, I don't worry about people stealing lures at every gas station or restaurant stop because they can not see them. 2) Safety of other people in the boat, especially my nephews on camping trips and such, I don't have to worry about them getting into lures and hooking themselves. At the end of a trip, the box slides right out and can be taken inside. I'll get a couple pictures of my set up.
On a side note, I am not familiar with e-6000 epoxy but I would use either the Weld-on 3 product that is made for bonding acrylic to itself or use hardware like the other guy did here. It would really suck if you were carrying your new box to the boat and it broke apart and dumped your baits all over.
Yes post up some pictures! |
|
| |
|
Posts: 128
| One thing I've noticed......Once you buy materials, the cost is very high. Makes buying one of the pre fabbed and available boxes like this much more attractive |
|
| |
|
| Well this one is going to stay on my boat no moving. It fits right next to the console and the rod locker on the other side. And it buts up against the front casting deck. I have a Plano box that's sorta in one of the pictures ill use if I'm taking baits somewhere.
But yours sounds like an awesome idea. My casting deck is only about 4 1/2 wide and 4 ft tall so its short and narrow. I don't have much room to do anything up there. |
|
| |
|
Posts: 1224
Location: Okoboji | no i used the stuff that "welds" the plastic together you just clamp it and use the metal syringe applicator and it welds it too a hard quickly set up clear seam. |
|
| |
|
| This is where its installed.
(PicsArt_1349816814240.jpg)
Attachments
----------------
|
|
| |
|
| What did you use to cut the stuff? |
|
| |
|
Posts: 293
| You can just rip acrylic down on a table saw...just go slower so you don't chip it up bad. |
|
| |
|
Posts: 615
Location: Madison, WI | MartinTD
Would love to see some pics of your tackle box / casting deck.
Cool ideas being debated here love the boxes guys....well done!!!
MS |
|
| |
|
Posts: 1143
Location: NorthCentral WI | MuskyNate27 - 10/11/2012 12:37 PM
You can just rip acrylic down on a table saw...just go slower so you don't chip it up bad.
I used a jigsaw with blades specifically for Plexiglass. Works great too. |
|
| |
|
Posts: 1143

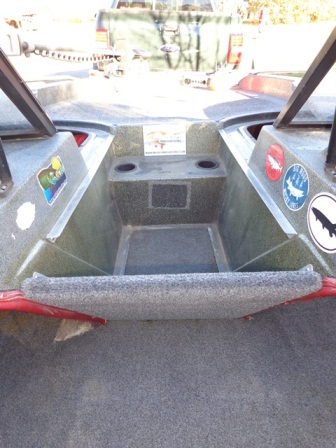

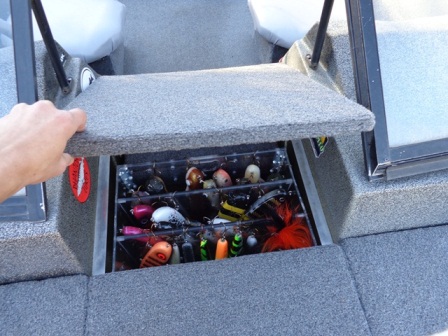

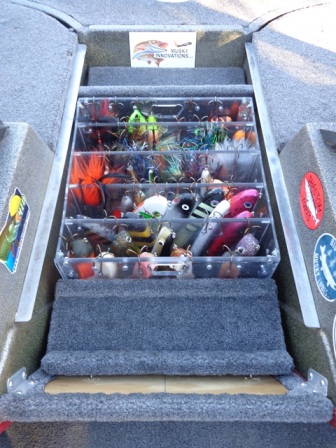

Location: NorthCentral WI | Here are pictures of what I was describing. You can see there used to be a step going to the front deck and wasted space in between the consoles. That is where I mounted the aluminum rails and built the box to fit inside the hole. Then carpeted a couple pieces of thick treated plywood for 'new' expanded front deck which doubles as tackle storage. When I get home for the day I lift the two center deck sections and lift the box right out. Plus I really like having all of the lures out of sight. It's worked out nice for me this season. The tray I made that covers what used to be the front step works great for release tools and the tray in back for keys, phone, and other junk. Functional.
Edited by MartinTD 10/12/2012 4:50 PM
Attachments
----------------
Boat Deck 001.JPG (81KB - 197 downloads)
Boat Deck 002.JPG (83KB - 232 downloads)
Boat Deck 004.JPG (95KB - 305 downloads)
Boat Deck 005.JPG (78KB - 206 downloads)
Boat Deck 007.JPG (84KB - 265 downloads)
Boat Deck 008.JPG (85KB - 219 downloads)
Boat Deck 009.JPG (91KB - 233 downloads)
|
|
| |
|
Posts: 1143
Location: NorthCentral WI | Here's a couple of the box. You can see it is tapered to fit the opening between the consoles perfectly. Also, on this one I just did straight cross sections for holding baits. I've found it actually works a little better because you are not limited on the slot size. I try to stagger lures for the most part and it keeps them separate just fine.
Edited by MartinTD 10/12/2012 4:57 PM
Attachments
----------------
Boat Deck 010.JPG (60KB - 264 downloads)
Boat Deck 011.JPG (62KB - 219 downloads)
|
|
| |
