Message Subject: Lure spinner

MRichardson

Posted 1/14/2015 12:23 PM (#748445)
Subject: Lure spinner

Hey all, it’s been a while since I’ve posted anything. That’s because my shop has been packed up for the last year and a half. I’m finally setting up shop again and can’t wait to start making lures. Well my lure spinner did not fare the move very well and it was time to rebuild it anyway. I just finished my plans for a new one and thought I’d share them here in case it’s helpful to anyone.

Edited by MRichardson 1/14/2015 12:53 PM

Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window

Click to expand / contract the width of this image

(Lure Spinner.jpg)

Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window

(Lure Spinner motor assy.jpg)

Attachments
----------------

Lure Spinner.jpg (49KB - 541 downloads)
Attachments

Lure Spinner motor assy.jpg (77KB - 545 downloads)

CedarLakeMusky

Posted 1/14/2015 12:42 PM (#748457 - in reply to #748445)
Subject: Re: Lure spinner

Thank you for sharing.
Scott

CedarLakeMusky

Posted 1/14/2015 12:54 PM (#748459 - in reply to #748445)
Subject: Re: Lure spinner

Mike,
Are you using a threaded rod for a reason. Are the holes in your wheels threaded?
Thanks,
Scott

mnmusky

Posted 1/14/2015 12:58 PM (#748460 - in reply to #748457)
Subject: Re: Lure spinner

Wow. Now that's planning!

MRichardson

Posted 1/14/2015 1:02 PM (#748461 - in reply to #748459)
Subject: Re: Lure spinner

Yes for a reason, first they are cheaper than drive shafts and will fit in the bearings good enough, but mainly I’ll use 3/8 nuts to jam secure the two plates or whatever other attachments I might want to have on the shaft.

musky slut

Posted 1/14/2015 1:13 PM (#748464 - in reply to #748445)
Subject: Re: Lure spinner

Posts: 496

Mike Thanks for that , glad to see you are getting back up and running . Been wanting to redo my spinner , so that gave me some ideas .

ShutUpNFish

Posted 1/16/2015 12:57 PM (#748895 - in reply to #748445)
Subject: Re: Lure spinner

Posts: 1202

Location: Money, PA

Welcome back Mike!

Loft

Posted 1/20/2015 7:39 AM (#749496 - in reply to #748445)
Subject: RE: Lure spinner

Posts: 1

Another option is the one used in the movie i'm linking to, just watch the last 10 seconds.
I think it's a smart solution

https://m.youtube.com/watch?v=8Vg_eUSxA8g

MRichardson

Posted 1/26/2015 8:56 AM (#750352 - in reply to #748445)
Subject: RE: Lure spinner

I built the drying wheel last weekend; total build time was about a six pack. Here’s what it looks like.

Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window

(drying_wheel.jpg)

Attachments
----------------


musky slut

Posted 1/26/2015 9:44 AM (#750363 - in reply to #748445)
Subject: Re: Lure spinner

Posts: 496

Mike, Whats the Buna n Spider thing do/for ? Looks great

MRichardson

Posted 1/26/2015 9:50 AM (#750364 - in reply to #748445)
Subject: RE: Lure spinner

The buna spider is soft rubber and fits within the two couplings to absorb misalignment

musky slut

Posted 1/26/2015 2:49 PM (#750419 - in reply to #748445)
Subject: Re: Lure spinner

Posts: 496

Cool thanks . cant wait to see some baits on that thing

genesisperformance

Posted 10/1/2016 9:26 AM (#831979 - in reply to #748445)
Subject: RE: Lure spinner

Posts: 403

Location: Lakeville, MN

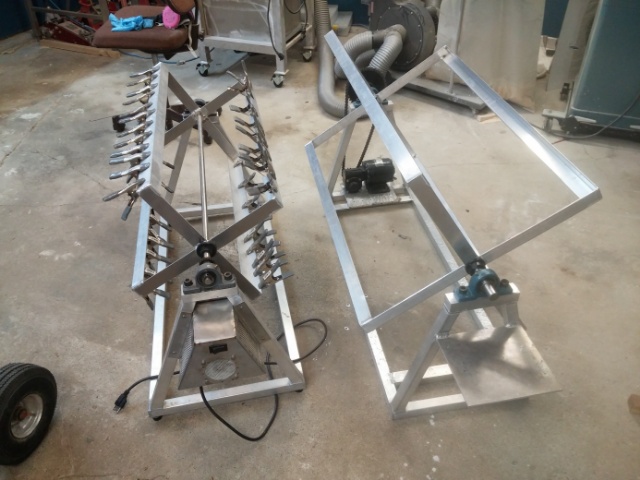

Ive built a few of these

Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window

(IMG_20161001_092723.jpg)

Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window

(IMG_20161001_092835.jpg)

Attachments
----------------

Attachments


rougarou

Posted 10/10/2016 6:10 PM (#832904 - in reply to #748445)
Subject: RE: Lure spinner

Posts: 102

i just changed my spinner from a wheel to this cost is about $80 - $100 main cost is motor i spaced at 4" so i have 12 spots but you can move them in to 2" easily and would end up with 24 on a 3'-4' spinner

mike

Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window

(IMG_1058.JPG)

Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window

(IMG_1057.JPG)

Attachments
----------------

Attachments


laker

Posted 10/16/2016 9:50 AM (#833695 - in reply to #832904)
Subject: RE: Lure spinner

Posts: 30

Hi,

What are you using to clamp the lure blank to the axle?
