Muskie Fishing -> Lures,Tackle, and Equipment -> Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!

Message Subject: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!
nazercl
Posted 11/3/2009 9:08 PM (#407569)
Subject: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!





I've looked into new handles, but I'd rather just do it myself and never have to do it again.

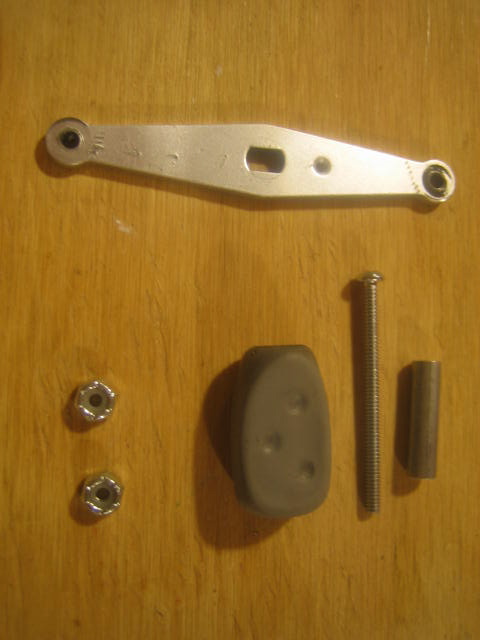

Materials to complete one entire handle (all at local hardware store):

2" 6/32 Stainless Machine Bolt (x2)
6/32 Lock Nut (has to be a lock--don't compromise on the extra $.02) (x4)
1" Aluminum Sleeve (x2)


Good Luck!




Edited by nazercl 11/3/2009 9:13 PM



Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_2577.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_2578.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_2582.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_2583.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_2585.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_2586.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_2587.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_2588.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(IMG_2589.JPG)



Attachments
----------------
Attachments IMG_2577.JPG (68KB - 186 downloads)
Attachments IMG_2578.JPG (68KB - 185 downloads)
Attachments IMG_2582.JPG (49KB - 220 downloads)
Attachments IMG_2583.JPG (39KB - 194 downloads)
Attachments IMG_2585.JPG (58KB - 197 downloads)
Attachments IMG_2586.JPG (33KB - 193 downloads)
Attachments IMG_2587.JPG (48KB - 179 downloads)
Attachments IMG_2588.JPG (41KB - 179 downloads)
Attachments IMG_2589.JPG (31KB - 189 downloads)
brewcrew
Posted 11/3/2009 10:39 PM (#407577 - in reply to #407569)
Subject: Re: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!





Posts: 283


Wow very cool I will definetly have to try this.
twells
Posted 11/4/2009 12:17 PM (#407635 - in reply to #407569)
Subject: RE: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!




Posts: 393


Location: Hopefully on the water		Thanks for the post and pics. I have a couple to do over the winter now.
jay lip ripper
Posted 11/4/2009 12:42 PM (#407639 - in reply to #407569)
Subject: Re: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!





Posts: 392


Location: lake x...where the hell is it?		great ideal!
RiverMan
Posted 11/4/2009 1:01 PM (#407642 - in reply to #407569)
Subject: Re: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!




Posts: 1504


Location: Oregon		Nice job.
snaggletooth
Posted 11/4/2009 1:03 PM (#407643 - in reply to #407569)
Subject: RE: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!




Posts: 148


Location: Milwaukee, WI		Nicely done.

Perhaps dab a little grease on the bolt threads before assembling ?
ToddM
Posted 11/4/2009 7:16 PM (#407679 - in reply to #407569)
Subject: RE: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!





Posts: 20269


Location: oswego, il		That is a pretty cool do it yourself project for those handles. I think I have ripped every one off my handles but I already reaplaced them all with gator grips. One nice thing about the gator grips is they are a bit longer and give some more leverage but if you need one fixed sooner than later or just want to fix the one you have, great tip!
Cowboyhannah
Posted 11/6/2009 2:50 PM (#407957 - in reply to #407569)
Subject: Re: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!





Posts: 1460


Location: Kronenwetter, WI		That's funny. Don't even need to speak English to understand those directions.

Well done.
Esox-Hunter
Posted 11/6/2009 3:31 PM (#407962 - in reply to #407957)
Subject: Re: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!





Posts: 774


Location: South East Wisconsin		Good to know.

S.Killips
Medford Fisher
Posted 11/9/2009 5:22 PM (#408220 - in reply to #407569)
Subject: Re: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!




Posts: 1061


Location: Medford, WI		Corey...very impressive! You don't know how many of those "paddle-less" handles I have. Pretty sure I've kept most of them; and now I have a reason for still have them.
Get out this weekend?

Thanks for the easy/cheap tips.
-Jake
nazercl
Posted 11/9/2009 10:27 PM (#408269 - in reply to #407569)
Subject: Re: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!





I can't tell you how easy this is...literally a couple minutes. SOLID, SOLID, SOLID....just don't tighten the second lock-nut too much and it's really slick.

I was down in Milwaukee this past weekend but will be heading back up North this weekend. Are you going to be out? If you need a second for the weekend, let me know.
Wissota Musky
Posted 11/13/2009 11:06 AM (#408679 - in reply to #407569)
Subject: RE: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!




Corey maybe in your free time you could fix your buddys handles and mount his new trolling motor for him.
one last cast
Posted 11/17/2009 5:34 PM (#409055 - in reply to #407569)
Subject: Re: Easy and inexpensive ($1.42) fix for loose Abu Garcia handles!!!




Location: Windy City		Very nice job
