muskiemaniac
Posted 10/29/2006 1:58 PM (#217614)
Subject: Big Wally Diver




Posts: 25


Location: Roseville, MN

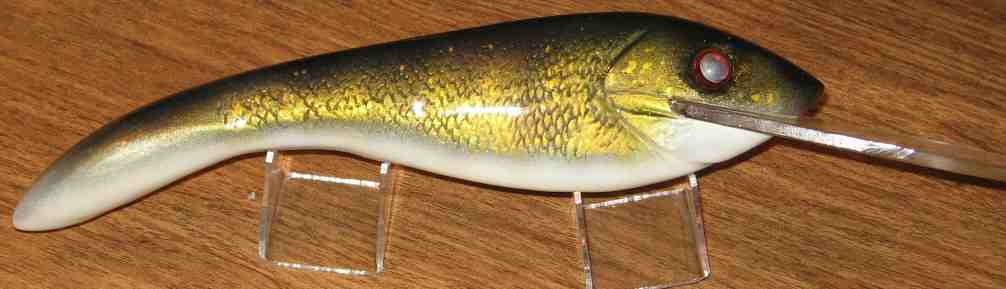

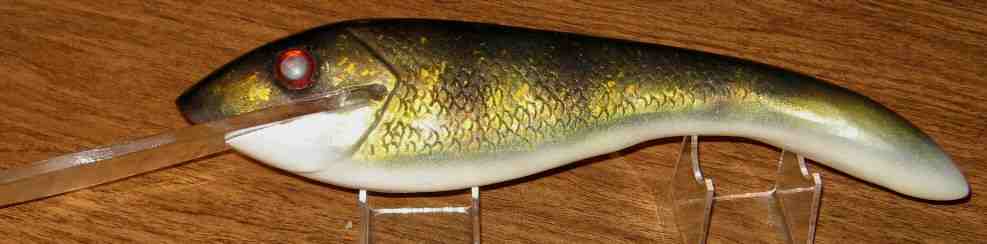

My first and last BIG trolling bait. After seeing so many outstanding b-i-g lures on this forum, and because I always wanted to try an ultra-natural paint job, I finally gave it a whirl. Had a lot of fun and I can see why lots of guys like to build huge lures. Now, it's back to topwaters for me.

Gale
WakeMaker Lures




Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(Walleye Diver 2.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(Walleye Diver.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(WkMkrTroller30001.jpg)



Attachments
----------------
Attachments Walleye Diver 2.jpg (19KB - 128 downloads)
Attachments Walleye Diver.jpg (23KB - 110 downloads)
Attachments WkMkrTroller30001.jpg (26KB - 119 downloads)
Tigger
Posted 10/29/2006 7:33 PM (#217677 - in reply to #217614)
Subject: RE: Big Wally Diver





Posts: 399


Location: Burton, Ohio
Very nice! how big is the lure over-all. I like how you did the suttle yellow patches on the head. They really have that on the cheeks. My friend is a taxidermist and that is one thing that makes his walleye mounts stand out. Nice job. What wood did you use? Is that maple?
Thanks
John


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(DSC00505email.jpg)



Attachments
----------------
Attachments DSC00505email.jpg (27KB - 108 downloads)
muskiemaniac
Posted 10/29/2006 9:56 PM (#217713 - in reply to #217614)
Subject: RE: Big Wally Diver




Posts: 25


Location: Roseville, MN

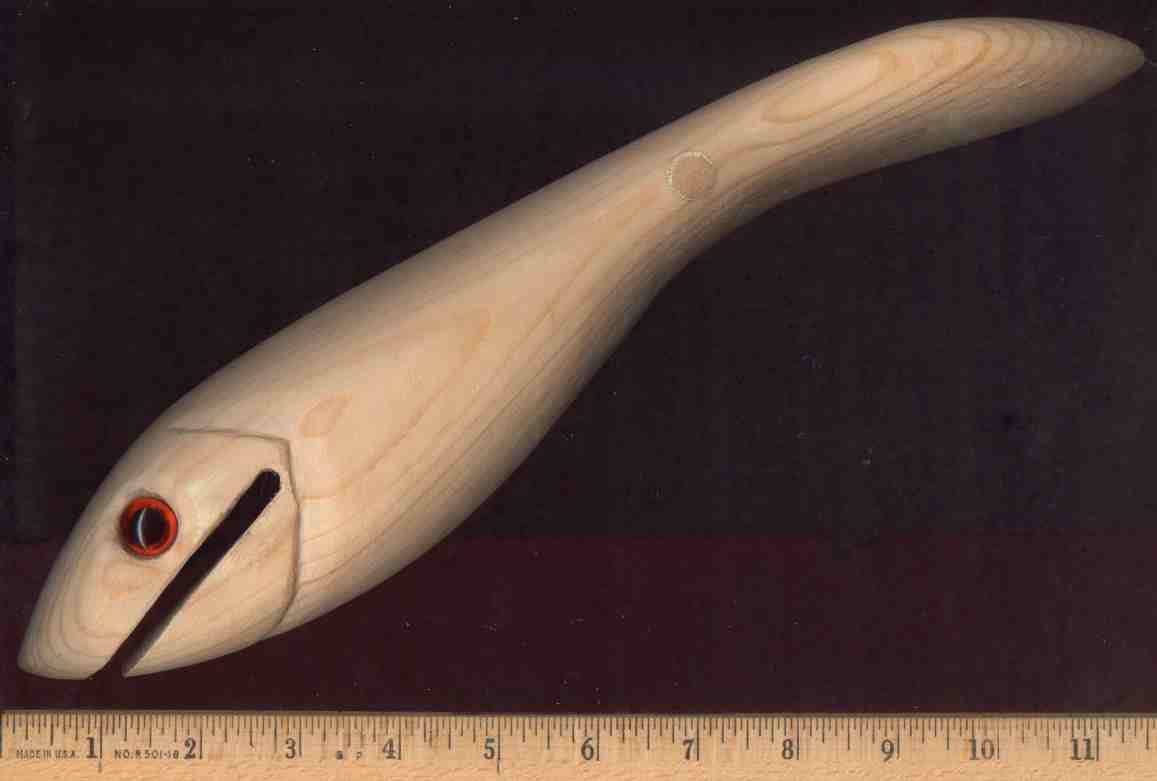

The wood body is a hair shy of 14". Since I normally make topwaters, I am most familiar with red cedar (non-aromatic) so that's what I used for this one. It was a bit tricky to get the interior weighting system worked out, but at rest, it hovers upright and slightly nose-down just below the surface. Pure, blind luck.
LeMay
Posted 10/30/2006 7:14 AM (#217735 - in reply to #217614)
Subject: RE: Big Wally Diver





Posts: 106


Location: Michigan
Looks real cool how did you do the scale's?
muskiemaniac
Posted 10/30/2006 8:43 AM (#217749 - in reply to #217614)
Subject: RE: Big Wally Diver




Posts: 25


Location: Roseville, MN
I pressed the scale pattern into the wood using a small, dull wood carving gouge. In earlier trials, a sharp-edged gouge left such a thin cut that I had to cut deeper into the wood than I really wanted too. A dull edge cut much less and gave me the "indented" look I wanted without removing any wood at all.

To give the scales depth, I initially sprayed the entire lure with 2 light coats of Spazstix Ultimate Mirror Chrome and then built up the chrome until I had a highly reflective mirror finish through out. Then, I applied a medium coat of one part Black mixed with one part Pearlized Silver (thinned with extender) over the scaled areas. After the black/silver dried, using very fine steel wool, I removed about 90% of it from the face of the scales, leaving only the scale grooves and the basis of the darker walleye markings darkened.

From this point, I basically had a black & chrome walleye and all that was left to do was add color tinting. I did so by using very transparent mixtures of Gold/Yellow, Gold/Brown, Green/Black and Black. After those color tints were dry, I used a more concentrated mixture of the Gold/Yellow and tipped a few random scales and applied several coats of Pearlcote Pearl to the belly and lower margin of the gill plates.

This is not an original painting process of mine. It is similar to the method used by some taxidermists on fish replicas. It is super easy, doesn't require and stenciling or masks, and by color-layering using transparent paints, even the most inartistic of us can create a realistic pattern. On the down side, you can't get something like this painted in a day, nor two. Figure on a week if you take your time and do it right.
Jschinderle
Posted 10/30/2006 11:25 AM (#217788 - in reply to #217614)
Subject: RE: Big Wally Diver




Posts: 36


very nice
uptown
Posted 10/30/2006 11:22 PM (#217932 - in reply to #217614)
Subject: RE: Big Wally Diver




Posts: 432


Location: mpls
Gale,
Looks Great!!
Joe
