Bigstick56
Posted 4/23/2015 10:39 AM (#766202)
Subject: New Tiller Locator Mount




Posts: 18

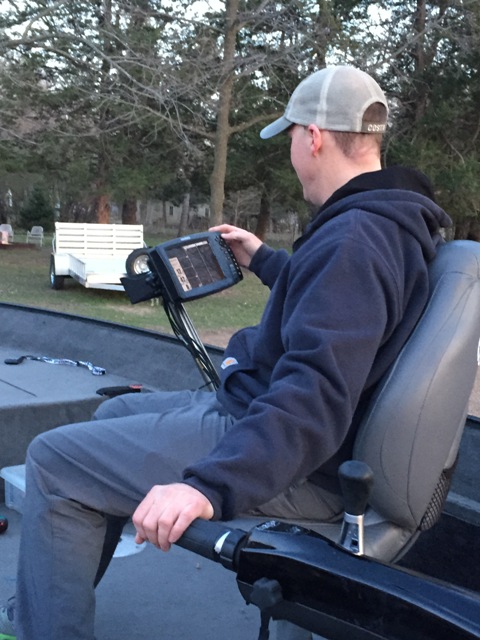

SO my buddy recently got into a new boat (Tuffy 1890 GT) and was a bit concerned on how far away the locator was when he was driving the boat. So after a few brain storm sessions we came up with this design.....This is just a proto type, but you can get the basic idea of it. Once we get some time on the water and solidify some design changes we will make Rev 7.1. This should work out nicely though as the he will be looking forward while still being able to read the H-bird....if all else fails, at least it looks awesome....


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(Tuffy1.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(Tuffy2.JPG)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(Tuffy3.JPG)



Attachments
----------------
Attachments Tuffy1.JPG (111KB - 166 downloads)
Attachments Tuffy2.JPG (92KB - 164 downloads)
Attachments Tuffy3.JPG (85KB - 187 downloads)
