[QUOTE]ESOX Maniac - 12/25/2008  9:41 AM

[QUOTE]whit65 - 12/24/2008  10:02 AM

Hey Al,
Merry Christmas and thanks large for the battery class, it's slowly sinking in to my brain which resists charging normally.
So I am going to parallel my new Optima and my older big ol'  Trojan battery and charge them separately, so I assume that I'd better unhook the batteries from one another before I hook up separate chargers, right?
W[/QUOTE]

If the batteries are different type - AGM & wet cell you don't need to charge them separately all the time. But the wet-cell may need a periodic equalize charge.  Get a marine dual battery paralleling switch - A-B-Both-Off. Set it to "Off" and turn on your charger(s). That way you don't have to disconnect any cabling. You can also do the same thing with a couple of marine grade 50A 12VDC single pole switches.

Here's some charging configurations for those interested.

Happy New Year!
Al

[/QUOTE]

HTML: Yes
Anonymous: Yes
MBBS Code: Yes

Disable HTML
Post anonymously
Enable emoticons

You are replying to:

ESOX Maniac

Posted 12/25/2008 9:41 AM (#351446 - in reply to #351325)
Subject: Re: 24 volt system

Posts: 2753

Location: Mauston, Wisconsin

whit65 - 12/24/2008 10:02 AM

Hey Al,
Merry Christmas and thanks large for the battery class, it's slowly sinking in to my brain which resists charging normally.
So I am going to parallel my new Optima and my older big ol' Trojan battery and charge them separately, so I assume that I'd better unhook the batteries from one another before I hook up separate chargers, right?
W

When paralleling battery's, if the battery is the same type but different size it's Ok to use a single charger- but you need to consider the combined AH rating when selecting the charger size. F. ex. If paralleling a 100AH with an 80AH the combined AH rating is 180AH. Ideally you would want a 18A-36A charger. I would never go lower than 10% of the AH rating. Some onboard dual or triple bank chargers permit paralleling of the output to achieve higher output ratings, i.e. a triple bank 10A charger may allow the three (3) 10A outputs to be paralleled for 30A total. Check with the manufacturer before purchase.

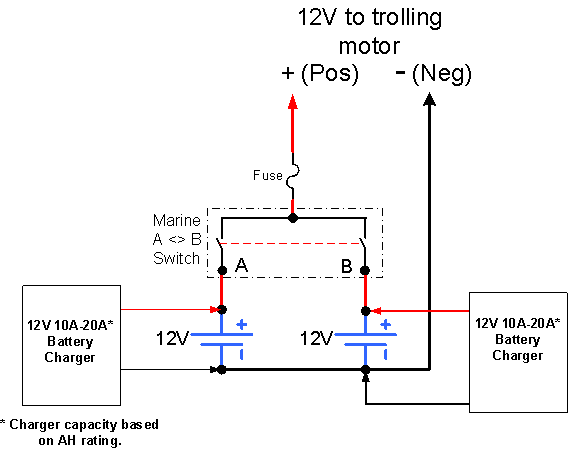

If the batteries are different type - AGM & wet cell you don't need to charge them separately all the time. But the wet-cell may need a periodic equalize charge. Get a marine dual battery paralleling switch - A-B-Both-Off. Set it to "Off" and turn on your charger(s). That way you don't have to disconnect any cabling. You can also do the same thing with a couple of marine grade 50A 12VDC single pole switches.

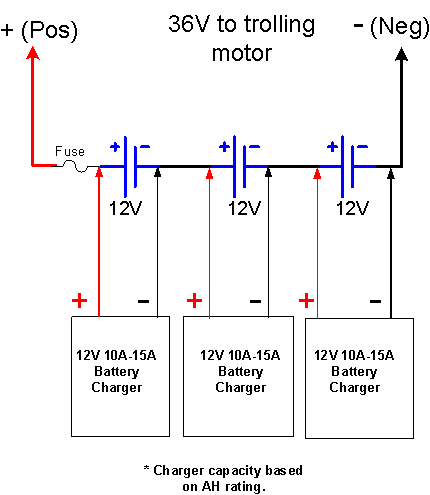

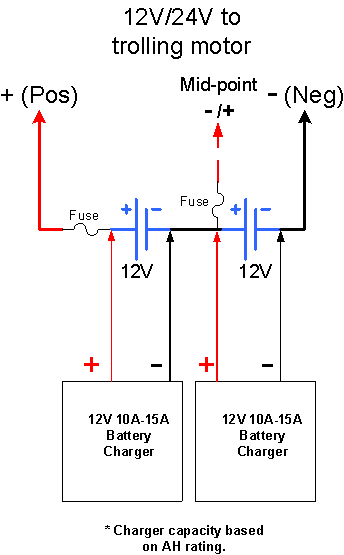

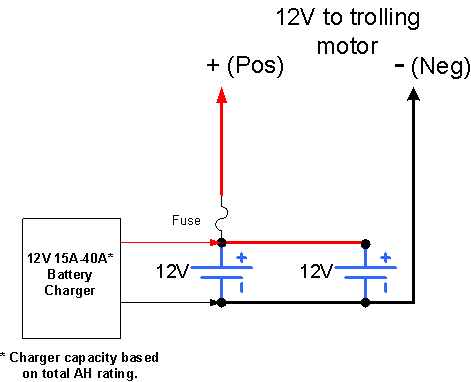

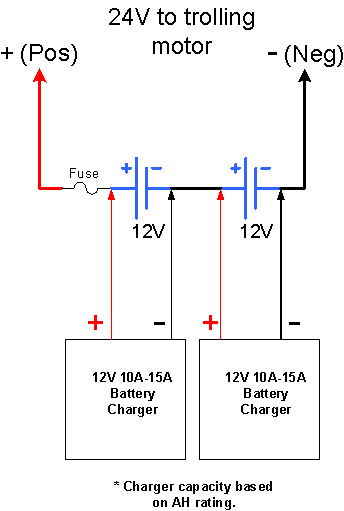

Here's some charging configurations for those interested.

Happy New Year!
Al
