Posts: 30
| The last few months there was a thread for boat pics...a whole bunch of nice boats, and alot of profile shots.
Now that spring is (technically) approaching, and some of us are starting to get boats ready for the water, let's see the insides of them. Especially if you have done any custom work (e.g., casting decks, bait boxes, rod boxes/holders, trolling/outrigger/downrigger setups, etc.). I'm looking for some ideas and inspiration. |
|
| |
|
Posts: 1663

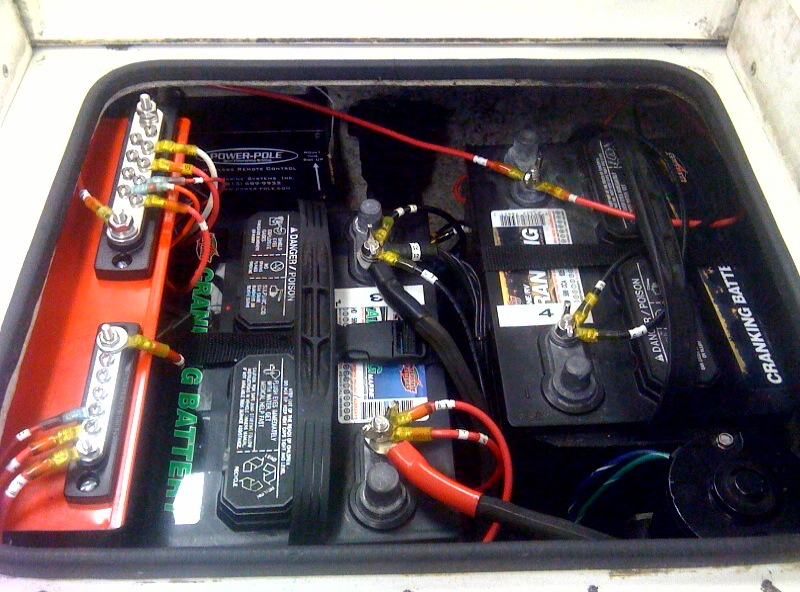

Location: Kodiak, AK | Here's some of my wiring busses, LED's, and Power Poles...I installed all of them myself.
Attachments
----------------
 buss bars.jpg (182KB - 173 downloads)
intake leds.jpg (131KB - 135 downloads)
|
|
| |
|
Posts: 25
| I made a rear deck extension into a bait box
Attachments
----------------
|
|
| |
|
Posts: 994
Location: Minnesota: where it's tough to be a sportsfan! | Jeff, you do pretty good work. I have 4 that need to be rigged for night fishing this year. Want to visit? |
|
| |
|
Posts: 265
Location: Hudson,WI | I like the wiring!! Very Nice!! |
|
| |
|
Posts: 1663
Location: Kodiak, AK | Thanks guys. I'm an aircraft mechanic by trade, so I can't stand crappy wiring and messes of wire...it's a pain to work on and impossible to deal with, should there be (Heaven forbid) a problem on the water. And keeping it simple and clean allows for easy cleaning and maintenance, and quick rectification should simple come up..easier to fix it early than to let it get bad and the problem grow.
jakejusa - 3/15/2013 1:12 PM
Jeff, you do pretty good work. I have 4 that need to be rigged for night fishing this year. Want to visit?
LOL, where are you in MN? LED's are dead easy to install. Two wires and they mount very easy. |
|
| |
|
Posts: 410
Location: With my son on the water | Can some one tell me how to post a picture?
Thanks |
|
| |
|
Posts: 2097
| When you make a reply click on the box to leave a attachment. |
|
| |
|
Posts: 66
Location: North Central, Indiana | esoxfly
can you tell me where you got those buss bars at. the only thing i can find seems to be cheap junk.
thanks
dennis |
|
| |
|
Posts: 1663
Location: Kodiak, AK | West Marine. |
|
| |
|
Posts: 1906
Location: Oconto Falls, WI | Nice work Jeff! |
|
| |
|
Posts: 265
Location: Hudson,WI | That gave me some great ideas. My battery terminals are full, and when they get full, they tend to look sloppy. So putting them on those bus bars not only makes it clean, and neat but easier to find what you're looking for  |
|
| |
|
Posts: 1663
Location: Kodiak, AK | Just get everything labeled and check to make sure everything is tight... now instead of one wingnut, you've got like a dozen nuts and screws. You can put grounds on a common post or buss tucked away somewhere else. But this does help if/when something isn't working or giving you problems, you can troubleshoot just that circuit instead of having to undo the entire post. |
|
| |
|
Posts: 265
Location: Hudson,WI | Like I said before, It's a great idea!!
To bad you don't live close, I'd have you rewire my boat to look just like yours |
|
| |
|
Posts: 410
Location: With my son on the water | I have modified every boat I have owned.
I just got my boat out of storage yesterday so I staged a few photos (these are not my normal rods and net)
I have added to the back deck so the deck goes all the way to the transom.
I installed a tube on the starboard side where I can stick two 9 foot rods.
I put a rope on the end of my net handle and then put a snap on the console. I can leave a fish in the net and not worry about the net going overboard.
I added plastic downspout tubes to the front of my console to store baits.
But per my son, the best thing I ever did was put a carpeted board on the port side to seperate the net and rods, (the net is never tangled in lures or rod handles anymore)
I can't figure out how to get the pictures to take.
Edited by btfish 3/16/2013 3:16 PM
|
|
| |
|
Posts: 1184
Location: Iowa Great Lakes | Always a work in progress but turned the livewell into blade storage....
Attachments
----------------
Livewell box.jpg (72KB - 149 downloads)
|
|
| |
|
| What is this esoxfly? http://muskie.outdoorsfirst.com/board/forums/get-attachment.asp?act...
Edited by 4amuskie 3/17/2013 9:51 PM
|
|
| |
|
Posts: 1663
Location: Kodiak, AK | 4amuskie - 3/17/2013 10:49 PM
What is this esoxfly? http://muskie.outdoorsfirst.com/board/forums/get-attachment.asp?act...
That's a Power Pole WavePak. It's basically an accumulator that allows the poles to stay engaged on the bottom in 2-3' waves. It comes from the factory with two little cheapo plastic clips like what you'd secure a small wire bundle with so I swapped them out for aluminum adel clamps with high temp sleeves. Edited by esoxfly 3/18/2013 5:22 AM
|
|
| |
|
| esoxfly - 3/18/2013 5:21 AM
4amuskie - 3/17/2013 10:49 PM
What is this esoxfly? http://muskie.outdoorsfirst.com/board/forums/get-attachment.asp?act...
That's a Power Pole WavePak. It's basically an accumulator that allows the poles to stay engaged on the bottom in 2-3' waves. It comes from the factory with two little cheapo plastic clips like what you'd secure a small wire bundle with so I swapped them out for aluminum adel clamps with high temp sleeves. Thank you. Didn't know that. You did a great job on your boat. Gave me some ideas. Thanks |
|
| |
|
Posts: 131
Location: Lake St. Clair | Here is a custom bait box that replaces the rear casting deck in the tuffy. You lose the storage under the casting deck, but it also gives a home to a couple hundred baits. This is much better than having them laying all over the boat. Also, it is very strong and sturdy so you can still use it as a casting deck. The carpet that was on it has since been removed and has been replaced with grip tape. Not as soft and cushy as carpet but still plenty of grip so you wont bust your rear end slipping on it when its wet.
Attachments
----------------
|
|
| |
|
Posts: 70
| 6 fog lights and a switch work great for landing my fish at night! Lights it up like daylight for CPR! |
|
| |
|
Posts: 568
Location: Lake St Clair | waterwolfhunter - 3/26/2013 10:02 AM
Here is a custom bait box that replaces the rear casting deck in the tuffy. You lose the storage under the casting deck, but it also gives a home to a couple hundred baits. This is much better than having them laying all over the boat. Also, it is very strong and sturdy so you can still use it as a casting deck. The carpet that was on it has since been removed and has been replaced with grip tape. Not as soft and cushy as carpet but still plenty of grip so you wont bust your rear end slipping on it when its wet.
Can we see what it looks like inside? |
|
| |
|
Posts: 791
Location: North Central IL USA | Yeah, open the casket! |
|
| |
|
Posts: 347
Location: eagle river,wis | here is some mods I did on my 621.Deck extension,foot throttle,landing light and net holder.
Attachments
----------------
|
|
| |
|
Posts: 383
| Love the the net holder idea! What did you build that out of? |
|
| |
|
Posts: 347
Location: eagle river,wis | made it with marine plywood and covered with ranger carpet.Holds my stowmaster net perfect. |
|
| |
|
Posts: 127
Location: SUN PRAIRIE WI | Hunter
You got any pics of the lights. I have been trying to come up with some idea for night fishing, idealy I wanted to be able to clamp the lights on at night, plug them into the 12 volt socket and have A switch on the floor so I can step on the switch to turn the lights on + off. I got the idea but not sure what to use to make it work. |
|
| |
|
Posts: 131
Location: Lake St. Clair | The Casket isnt nearly full! I just got it this year. Here is a pic of my "rubber" half. Mind you those are pounders and you can easily fit two in one cube. There is a lot of room in this thing and there is a lot of work to do to fill it!
Attachments
----------------
|
|
| |
|
Location: Contrarian Island | it's something simply I copied from my buddy T-Dog but I've seen quite a few quys do it after seeing mine.... ram mount to a rod holder type thingy to keep your rods all nice and organized and not bouncing on the glass/windshield area. Buddy with a dual console put a ball on each side so he can move the ram side to side when fishing off either side.....
Attachments
----------------
rod holder.jpg (84KB - 149 downloads)
|
|
| |
|
Posts: 138
Location: Utah | Gotta love the pedestal rod holder for the prop wash troll and also can't beat the Lund sport trak for trolling holder setups.
Attachments
----------------
Pedestal Holder.jpg (147KB - 125 downloads)
Lund Sport Trak.jpg (149KB - 151 downloads)
|
|
| |
