helix 10 sonar settings
muskyhunter07
Posted 7/9/2017 8:14 PM (#869375)
Subject: helix 10 sonar settings




Location: Northern Illinois
Hi all,

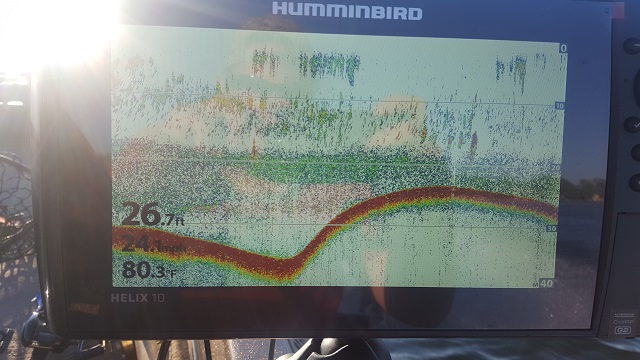

I have recently installed a new shoot thru hull transducer on my ranger 681vs for 2d sonar. I'm getting these weird green lines throughout the picture as seen in the photos below what is that and how do i get rid of it?


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(20170708_185804.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(20170708_190517.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(20170708_190938.jpg)


Zoom - | Zoom 100% | Zoom + | Expand / Contract | Open New window
Click to expand / contract the width of this image
(20170708_194049.jpg)



Attachments
----------------
Attachments 20170708_185804.jpg (110KB - 507 downloads)
Attachments 20170708_190517.jpg (129KB - 483 downloads)
Attachments 20170708_190938.jpg (102KB - 456 downloads)
Attachments 20170708_194049.jpg (142KB - 473 downloads)
Fishysam
Posted 7/9/2017 9:37 PM (#869391 - in reply to #869375)
Subject: Re: helix 10 sonar settings




Posts: 1209


Is the helix new out of the box? Or is it used? I would personally select "restore defaults" anyway. Doing so should return everything to new as well as new uses "clear mode" and 83khz

I personally would used dual beam and clear mode Maybe back the sensitivity down to 9 out of 20.

Also to me it kinda looks like thermocline since you water is 80*

Edited by Fishysam 7/9/2017 9:40 PM
Fishysam
Posted 7/9/2017 9:49 PM (#869397 - in reply to #869375)
Subject: Re: helix 10 sonar settings




Posts: 1209


Pictures 1 and 2 look like fish and bait above the "thermocline" the lines are fish or large bait moving the same speed as you in the same direction.
muskyhunter07
Posted 7/9/2017 9:56 PM (#869399 - in reply to #869397)
Subject: Re: helix 10 sonar settings




Location: Northern Illinois
Yes the unit is brand new out of the box. The unit has 2 transducers installed. 1st is the SI puck out the back of the transom the goes to splitter cable to a 2D puck thru hull transducer. I just want to be sure its not interference or that the shoot thru hull puck isn't installed right... I will reset unit to default next time i'm out. I tried adjusting the clear mode and sensitivity with not much change.. Could be the lake i'll take it out to a different lake and see if I get the same thing..
Fishysam
Posted 7/10/2017 3:33 PM (#869496 - in reply to #869375)
Subject: Re: helix 10 sonar settings




Posts: 1209


I is not interferance I know that would look like vertical lines with a rythum or pattern.
muskyhunter07
Posted 7/10/2017 4:28 PM (#869503 - in reply to #869375)
Subject: Re: helix 10 sonar settings




Location: Northern Illinois
What would a a shoot thru hull transducer look like if it wasn't installed properly?
Fishysam
Posted 7/10/2017 9:02 PM (#869538 - in reply to #869375)
Subject: Re: helix 10 sonar settings




Posts: 1209


Top to bottom bs, but it would be hard to do it that bad, I guess surface clearity could remove some of it, why do you think it may be installed wrong?
muskyhunter07
Posted 7/10/2017 9:06 PM (#869539 - in reply to #869538)
Subject: Re: helix 10 sonar settings




Location: Northern Illinois
Just wondering if it wasn't pushed all the way down into the epoxy and has possible air bubble between the transducer and the hull? I don't know at this point just trying to find a solution. I'm not sure if its a setting issue or a hardware issue.
pklingen
Posted 7/11/2017 5:36 AM (#869578 - in reply to #869503)
Subject: Re: helix 10 sonar settings




Posts: 866


Location: NE Ohio
muskyhunter07 - 7/10/2017 5:28 PM

What would a a shoot thru hull transducer look like if it wasn't installed properly?


i hear that you can get air bubbles trapped in the epoxy between the ducer and hull. and that screws it up.

about the problem............try adjusting the surface clutter setting in the advanced menu on sonar.
muskyhunter07
Posted 7/11/2017 8:54 AM (#869605 - in reply to #869375)
Subject: Re: helix 10 sonar settings




Location: Northern Illinois
I will look at the surface clutter setting thanks. Any idea what air bubbles in the epoxy would look like on the graph? or would it just not read at all?
Lundbob
Posted 7/11/2017 1:22 PM (#869653 - in reply to #869375)
Subject: Re: helix 10 sonar settings





Posts: 443


Location: Duluth, MN
Does your other transducer also do sonar or just SI? What happens when you switch to it?
muskyhunter07
Posted 7/11/2017 3:02 PM (#869681 - in reply to #869653)
Subject: Re: helix 10 sonar settings




Location: Northern Illinois
My main transducer is mega chirp does both 2d, si and di. I was told to purchase just a 2d shoot thru hull transducer for high speed readings so I did. I was also told that the unit will use the shoot thru hull for 2d automatically with the splitter cord from Humminbird. I haven't tried just the main transducer by itself. I guess if I isolate each one by unplugging the transducer it will tell me if one or the other is bad.
Fishysam
Posted 7/11/2017 3:22 PM (#869690 - in reply to #869375)
Subject: Re: helix 10 sonar settings




Posts: 1209


Yes that is perfect, undo the splitter and run directly to the helix. If nothing changes then no issue if it does change I would retry the splitter. If it's good your good if not put a small a out of dialectic grease In The splitter connections.

Also you do not want a bundle of transducer cords with the extra, you want to have a 8 so that signal doesn't jump though the insulation because it's traveling parallel. It is not possible to jump enough information if it is going the opposite ways.
muskyhunter07
Posted 7/11/2017 8:48 PM (#869748 - in reply to #869375)
Subject: Re: helix 10 sonar settings




Location: Northern Illinois
Yes I will do as stated and see what happens. So you mean don't loop the extra transducer cords in a circle and zip tie? Put them in and 8 pattern?
Fishysam
Posted 7/11/2017 9:06 PM (#869749 - in reply to #869375)
Subject: Re: helix 10 sonar settings




Posts: 1209


Yes a circle is asking for some cross talk, but if u make them into an 8 so the signal is always head on to the next return that is supposed to help. Not going to lie both my si and us2 cables are in a circle but another forum has a lot to say about this.
muskyhunter07
Posted 7/12/2017 2:12 PM (#869887 - in reply to #869375)
Subject: Re: helix 10 sonar settings




Location: Northern Illinois
What forum are you looking at to get this info, do they have any info on the general settings of these units?
The Nate
Posted 7/12/2017 2:36 PM (#869890 - in reply to #869375)
Subject: Re: helix 10 sonar settings





Change Switchfire from max mode to clear mode??? out of the box mine defaulted to max mode and it was a mess, changing to clear mode made a huge difference.

Edited by The Nate 7/12/2017 2:41 PM
muskyhunter07
Posted 7/12/2017 4:05 PM (#869905 - in reply to #869890)
Subject: Re: helix 10 sonar settings




Location: Northern Illinois
I did see the switch fire mode. I have it set to clear mode.
Fishysam
Posted 7/12/2017 5:57 PM (#869925 - in reply to #869375)
Subject: Re: helix 10 sonar settings




Posts: 1209


http://www.bbcboards.net/forum.php

No please do not forget about us here at Muskie first for these people all want to go 90 mph and catch bait in the forum of green bass. About 15-20 categories down is the humminbird sonar forum use that one not the humminbird image interpretation page.
muskyhunter07
Posted 7/12/2017 6:00 PM (#869926 - in reply to #869925)
Subject: Re: helix 10 sonar settings




Location: Northern Illinois
Awesome thanks. I will post my pictures there and see if I can get some more input... Kind of scared of these bass guys though..
Mdamp104
Posted 7/13/2017 6:43 AM (#869978 - in reply to #869375)
Subject: Re: helix 10 sonar settings





Posts: 146


Location: Shawano, Wi
are you talking about the grid lines?
muskyhunter07
Posted 7/13/2017 7:16 AM (#869981 - in reply to #869978)
Subject: Re: helix 10 sonar settings




Location: Northern Illinois
No in the second picture there is green stuff in the middle of the screen I can't seem to get that to dissappear
Mdamp104
Posted 7/13/2017 7:28 AM (#869984 - in reply to #869375)
Subject: Re: helix 10 sonar settings





Posts: 146


Location: Shawano, Wi
that sr is the thermocline to get rid of it put it on the clear mode not max and switch what frequency your using that should take care of it.
muskyhunter07
Posted 7/13/2017 10:34 PM (#870075 - in reply to #869375)
Subject: Re: helix 10 sonar settings




Location: Northern Illinois
It is on clear mode Not max. And I'm running 83/200 frequency for 2d sonar.
mtcook16
Posted 7/14/2017 3:55 PM (#870164 - in reply to #869375)
Subject: Re: helix 10 sonar settings





Posts: 546


Location: MN
Any update on what happened when you isolated the transducers by plugging them in directly and separately to the unit? What 2D sonar settings are you running for Sensitivity, Contrast, chart speed, etc?
muskyhunter07
Posted 7/14/2017 4:09 PM (#870166 - in reply to #870164)
Subject: Re: helix 10 sonar settings




Location: Northern Illinois
I haven't done that yet lakes are closed around here do to flooding. I will post back what I find and also what settings I have on it.
